Better Roofing Through Technology

WEATHERWELD ROOF SYSTEMS

ROOF ENCAPSULATION


SMOOTH SURFACED


GRAVEL SURFACED

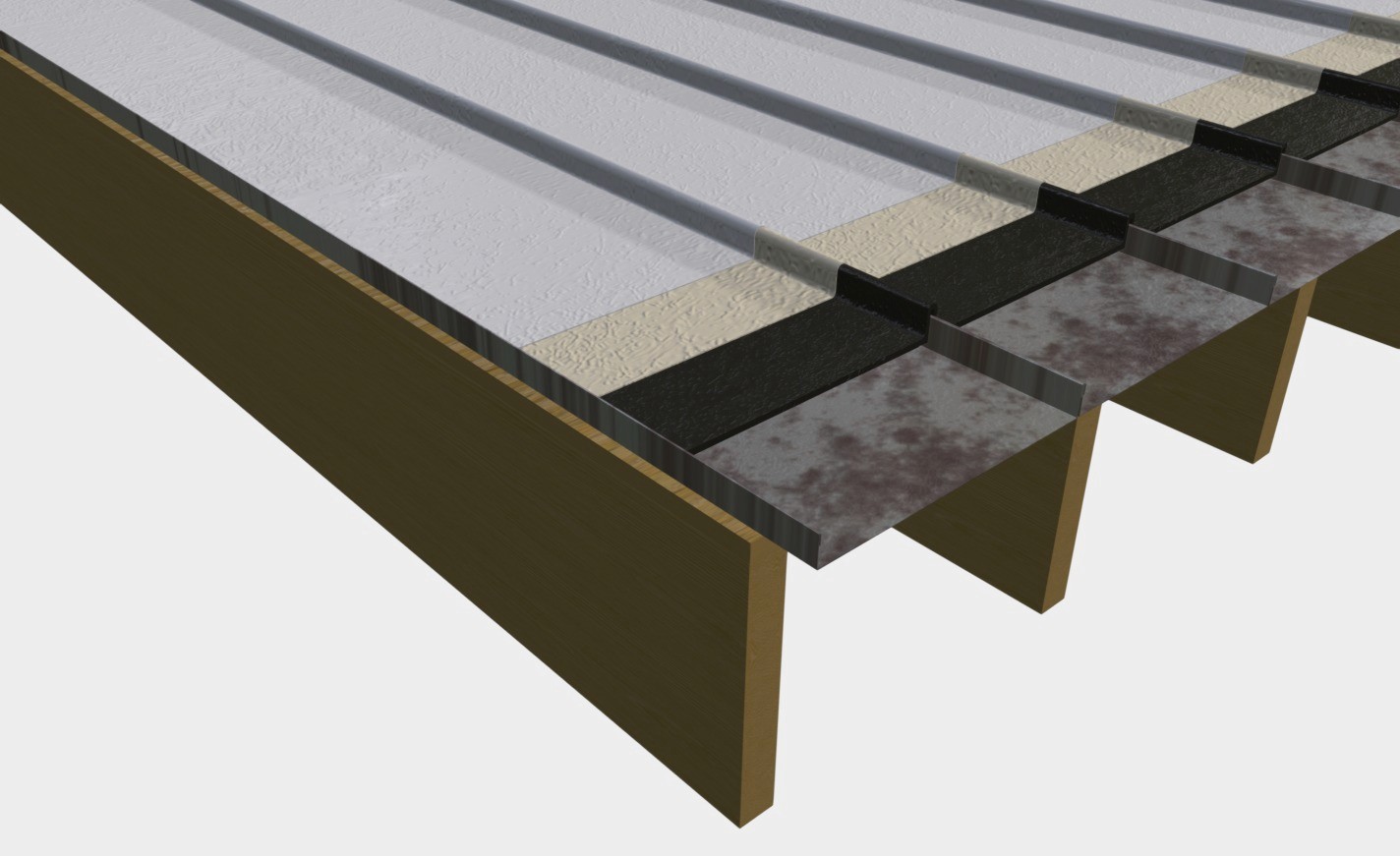

STANDING SEAM

NEW / REPLACEMENT ROOFS


NON-NAILABLE DECKS

NAILABLE DECKS

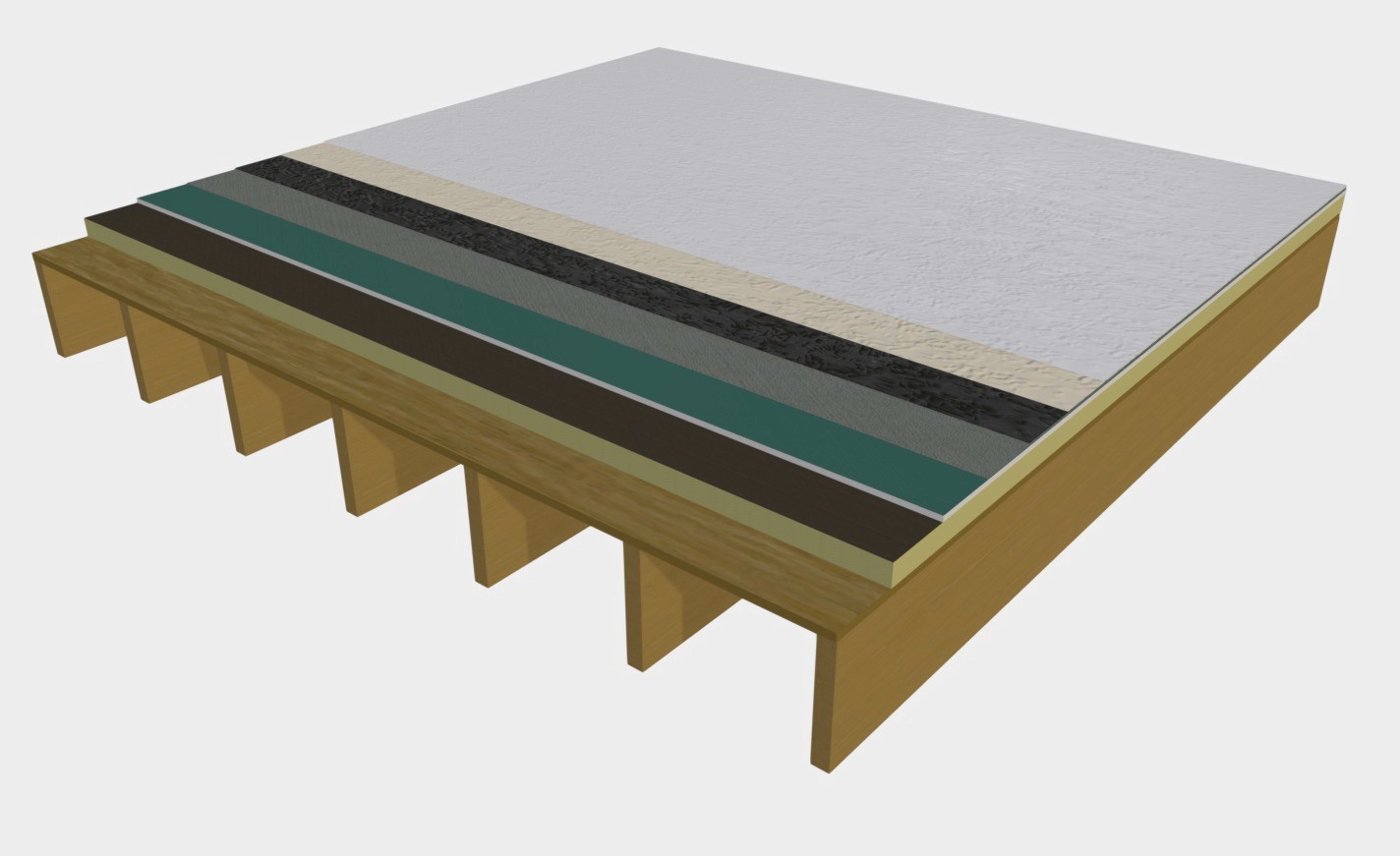

INSULATED ROOFS

SPECIFY YOUR ROOF IN 3 SIMPLE STEPS

Project Type
Roof / Deck Type
Insulation

WEATHERWELD ROOF MATERIALS

WWFG100

WeatherWeld Fiberglass Roving

WWFG100 - Fiberglass Roving is continuous filament glass fiber consisting of approximately sixty strands held together loosely in rope form by a special sizing. Roving is designed for spray application using the WeatherWeld 3D Roof Printer to provide reinforcement for WeatherWeld asphalt emulsion coating.

WW470048

WeatherWeld Aluminum Roof Coating

WW470048 - Aluminum Roof Coating is designed as a reflective coating for WeatherWeld roof systems. Premium aluminum flakes are suspended in emulsified asphalt and provide outstanding weathering resistance and reflectance. This coating reduces surface temperature and penetration of sun rays on the roof surface. It helps reduce interior temperature and protects the roof and roofing membrane by reducing heat absorption, asphalt oxidation, and rapid thermal dimensional changes. Meets ENERGYSTAR standards

WW473049

WeatherWeld Cool Roof Reflective Coating

WW473049 - Cool Roof Reflective Coating is a multi-purpose, acrylic, elastomeric coating for use over a variety of substrates including asphalt and metal roofing. It has unique "bleed blocking" properties which make it particularly suited for coating over asphalt surfaces, and exceeds several ASTM D6083 requirements for tensile strength, elongation, wet adhesion and weatherability.

WW472049

WeatherWeld Elastomeric Base Coat

WW472049 - WeatherWeld acrylic basecoat is a water-carried, acrylic elastomeric coating designed to facilitate proper adhesion of WeatherWeld Title 24 compliant Cool Roof Coating to WeatherWeld emulsion. WW472049 provides superior protection against ponding water and eliminates the need for costly replacement.

WW471145

WeatherWeld Asphalt Emulsion

WW471145 - WeatherWeld Asphalt Emulsion is the primary waterproofing component of WeatherWeld roofing systems and is applied simultaneously with WeatherWeld fiberglass. A colloid mixture of water, asphalt, and bentonite clay, WeatherWeld asphalt emulsion is water carried, low odor, UV stable and 0 VOC.

WW474049

Self-Adhering Membrane

WW474049 - WeatherWeld self adhering membrane is a modified roofing membrane sheet with a self sticking adhesive backing used as a general flashing sheet at transitions, terminations, and flashings. Self adhering is also used to bridge gaps and as a field repair tape before WeatherWeld applications
